Input Output (IO) Management:IO Organization.

IO Organization

In the previous section we discussed various issues that arise from the need to support a wide range of devices. To meet these varied requirements, a few well understood modalities have evolved over time. The basic idea is to select a mode of communication taking device characteristics into account or a need to synchronize with some event, or to just have a simple strategy to ensure a reliable assured IO.

Computers employ the following four basic modes of IO operation:

1. Programmed mode

2. Polling mode

3. Interrupt mode

4. Direct memory access mode.

We shall discuss each of these modes in some detail now.

5.2.1 Programmed Data Mode

In this mode of communication, execution of an IO instruction ensures that a program shall not advance till it is completed. To that extent one is assured that IO happens before anything else happens. As depicted in Figure 5.1, in this mode an IO instruction is issued to an IO device and the program executes in “busy-waiting” (idling) mode till the IO is completed. During the busy-wait period the processor is continually interrogating to check if the device has completed IO. Invariably the data transfer is accomplished through an identified register and a flag in a processor. For example, in Figure 5.1 depicts

Figure 5.1: Programmed mode of IO.

how an input can happen using the programmed data mode. First the processor issues an IO request (shown as 1), followed by device putting a data in a register (shown as 2) and finally the flag (which is being interrogated) is set (shown as 3). The device either puts a data in the register (as in case of input) or it picks up data from the register (in case of output). When the IO is accomplished it signals the processor through the flag. During the busy-wait period the processor is busy checking the flag. However, the processor is idling from the point of view of doing anything useful. This situation is similar to a car engine which is running when the car is not in motion – essentially “idling”.

5.2.2 Polling

In this mode of data transfer, shown in Figure 5.2, the system interrogates each device in turn to determine if it is ready to communicate. If it is ready, communication is initiated and subsequently the process continues again to interrogate in the same sequence. This is just like a round-robin strategy. Each IO device gets an opportunity to establish Communication in turn. No device has a particular advantage (like say a priority) over other devices.

Polling is quite commonly used by systems to interrogate ports on a network. Polling may also be scheduled to interrogate at some pre-assigned time intervals. It should be remarked here that most daemon software operate in polling mode. Essentially, they use a while true loop as shown in Figure 5.2.

In hardware, this may typically translate to the following protocol:

1. Assign a distinct address to each device connected to a bus.

2. The bus controller scans through the addresses in sequence to find which device wishes to establish a communication.

3. Allow the device that is ready to communicate to leave its data on the register.

4. The IO is accomplished. In case of an input the processor picks up the data. In case of an output the device picks up the data.

5. Move to interrogate the next device address in sequence to check if it is ready to communicate.

Figure 5.2: Polling mode of IO.

As we shall see next, polling may also be used within an interrupt service mode to identify the device which may have raised an interrupt.

5.2.3 Interrupt Mode

Let us begin with a simple illustration to explain the basic rationale behind interrupt mode of data transfer. Suppose a program needs input from a device which communicates using interrupt. Even with the present-day technology the devices are one thousand or more times slower than the processor. So if the program waits on the input device it would cycle through many processor cycles just waiting for the input device to be ready to communicate. This is where the interrupt mode of communication scores.

To begin with, a program may initiate IO request and advance without suspending its operation. At the time when the device is actually ready to establish an IO, the device raises an interrupt to seek communication. Immediately the program execution is suspended temporarily and current state of the process is stored. The control is passed on to an interrupt service routine (which may be specific to the device) to perform the desired input. Subsequently, the suspended process context is restored to resume the program from the point of its suspension.

Interrupt processing may happen in the following contexts:

•  Internal Interrupt: The source of interrupt may be a memory resident process or a function from within the processor. We regard such an interrupt as an internal interrupt. A processor malfunction results in an internal interrupt. An attempt to divide by zero or execute an illegal or non-existent instruction code results in an internal interrupt as well. A malfunction arising from a division by zero is called a trap. Internal interrupt may be caused by a timer as well. This may be because either the allocated processor time slice to a process has elapsed or for some reason the process needs to be pre-empted. Note that an RTOS may pre-empt a running process by using an interrupt to ensure that the stipulated response time required is met. This would also be a case of internal interrupt.
•  External Interrupt: If the source of interrupt in not internal, i.e. it is other than a process or processor related event then it is an external interrupt. This may be caused by a device which is seeking attention of a processor. As indicated earlier, a program may seek an IO and issue an IO command but proceed. After a while, the device from which IO was sought is ready to communicate. In that case the device may raise an interrupt. This would be a case of an external interrupt.
•  Software Interrupt: Most OSs offer two modes of operation, the user mode and the system mode. Whenever a user program makes a system call, be it for IO or a special service, the operation must have a transition from user mode to system mode. An interrupt is raised to effect this transition from user to system mode of operation. Such an interrupt is called a software interrupt.

We shall next examine how an interrupt is serviced. Suppose we are executing an instruction at i in program P when interrupt signal has been raised. Let us also assume that we have an interrupt service routine which is to be initiated to service the interrupt. The following steps describe how a typical interrupt service may happen.

• Suspend the current program P after executing instruction i.
• Store the address of instruction at i + 1 in P as the return address. Let us denote this address as PADDRi+1. This is the point at which program P shall resume its execution following the interrupt service. The return address is essentially the incremented program counter value. This may be stored either in some specific location or in some data structure (like a stack or an array). The transfer of control to an interrupt service routine may also be processed like a call to a subroutine. In that case, the return address may even be stored in the code area of the interrupt service routine. Let us identify the location where we stored PADDRi+1 as the address RESTORE. Later, in step-4, we shall see how storing the return address helps to restore the original sequence of program starting at PADDRi+1.
• Execute a branch unconditionally to transfer control to the interrupt service instructions. The immediately following instruction cycle initiates the interrupt service routine.
• Typically the last instruction in the service routine executes a branch indirect from the location RESTORE. This restores the program counter to take the next instruction at PADDRi+1. Thus the suspended program P obtains the control of the processor again

5.2.4 Issues in Handling Interrupts

There are many subtle issues and points that need clarification. We shall examine some of these in some detail next.

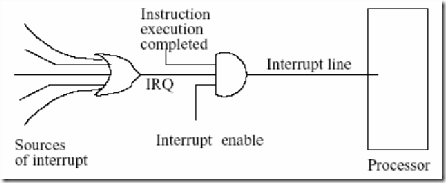

Figure 5.3: How an interrupt is detected.

•  Detecting an interrupt: In Figure 5.3 we depict how a processor may detect an interrupt request. When a processor has an interrupt enable signal up, then at the end of an instruction cycle we shall recognize an interrupt if the interrupt request (IRQ) line is up. Once an interrupt is recognized, interrupt service shall be required. Two minor points now arise. One is when is interrupt enabled. The other is how a device which raises the interrupt is identified.
• When is interrupt enabled: Sources of interrupt may have assigned priorities. If a higher priority device seeks an interrupt, the lower priority device may be denied the per-mission to raise an interrupt. Also, in many real-time systems there may be a critical operation which must proceed without an interrupt. Later, in the next chapter, we will see that certain system operations, particularly which deal with resource allocation or semaphores, cannot be interrupted. In that case a processor may disable interrupt. Next we will look at the mechanisms that may be used to identify the source of an interrupt. Yet another simple mechanism would be to use a mask register. By setting a mask, one can disable some interrupt request lines to send interrupt requests.
•  Identifying the source of interrupt: As we saw in Figure 5.3 many devices that wish to raise interrupt are gated in via an OR gate to raise an interrupt request (IRQ). Usually, the requests from a set of devices with equal priority would be pooled. Such a pool may have a set of devices under a cluster controller or an IO processor of some kind. One way of determining is to use polling which we discussed earlier. Another mechanism may be to have a daisy-chain arrangement of devices as shown in Figure 5.4. We notice that the normally closed position of the switch allows interrupt to be raised from the devices lower down in the chain.

Figure 5.4: Daisy chained devices.

The interrupting device raises the interrupt and the address or data may then be asserted on the bus as shown in Figure 5.4.

It is also possible that there may be an interrupt raised through an IO cluster (which may be for a SCSI device). In that case there would have to be a small hardware in which the specific address of the device as well as data may be stored. A small protocol would then resolve the IO.

•  Interrupt received when a different process is executing: Suppose the process Pi initiated an IO. But subsequently it relinquishes the processor to process Pj . This may well happen because the process Pi may have finished its time slice or it may have reached a point when it must process a data expected from the device. Now let us suppose that priority of process Pi is higher than that of Pj. In that case the process Pj shall be suspended and Pi gets the processor, and the IO is accomplished. Else the process Pj shall continue and the IO waits till the process Pi is able to get the control of the processor. One other way would be to let the device interrupt the process Pj but store the IO information in a temporary buffer (which may be a register) and proceed. The process Pj continues. Eventually, the process Pi obtains the CPU. It would pick up the data from the temporary buffer storage. Clearly, the OS must provide for such buffer management. We next examine nested interrupts i.e. the need to service an interrupt which may occur during an interrupt service.
•  An Interrupt during an interrupt service: This is an interesting possibility.

Often devices or processes may have priorities. A lower priority process or device cannot cause an interrupt while a higher priority process is being serviced. If, however, the process seeking to interrupt is of higher priority then we need to service the interrupt.

In the case where we have the return address deposited in the interrupt service routine code area, this can be handled exactly as the nested subroutine calls are handled. The most nested call is processed first and returns to the address stored in its code area. This shall always transfer the control to next outer layer of call. In the case we have a fixed number of interrupt levels, the OS may even use a stack to store the return addresses and other relevant information which is needed.

•  Interrupt vector: Many systems support an interrupt vector (IV). As depicted in

Figure 5.5: Interrupt vectors.

Figure 5.5, the basic idea revolves around an array of pointers to various interrupt service routines. Let us consider an example with four sources of interrupt. These may be a trap, a system call, an IO, or an interrupt initiated by a program. Now we may associate an index value 0 with trap, 1 with system call, 2 with IO device and 3 with the program interrupt. Note that the source of interrupt provides us the index in the vector. The interrupt service can now be provided as follows:

• Identify the source of interrupt and generate index i.
• Identify the interrupt service routine address by looking up IVR(i), where IVR stands for the interrupt vector register. Let this address be ISRi.
• Transfer control to the interrupt service routine by setting the program counter to ISRi.

Note that the interrupt vector may also be utilized in the context of a priority-based interrupt in which the bit set in a bit vector determines the interrupt service routine to be selected. It is very easy to implement this in hardware.

5.2.5 DMA Mode of Data Transfer

This is a mode of data transfer in which IO is performed in large data blocks. For instance, the disks communicate in data blocks of sizes like 512 bytes or 1024 bytes. The direct memory access, or DMA ensures access to main memory without processor intervention or support. Such independence from processor makes this mode of transfer extremely efficient.

When a process initiates a direct memory access (DMA) transfer, its execution is briefly suspended (using an interrupt) to set up the DMA control. The DMA control requires the information on starting address in main memory and size of data for transfer. This information is stored in DMA controller. Following the DMA set up, the program resumes from the point of suspension. The device communicates with main memory stealing memory access cycles in competition with other devices and processor. Figure

5.6 shows the hardware support.

Figure 5.6: DMA : Hardware support.

Let us briefly describe the operations shown in Figure 5.6. Also, we shall assume a case of disk to main memory transfer in DMA mode. We first note that there is a disk controller to regulate communication from one or more disk drives. This controller essentially isolates individual devices from direct communication with the CPU or main memory. The communication is regulated to first happen between the device and the controller, and later between the controller and main memory or CPU if so needed. Note that these devices communicate in blocks of bits or bytes as a data stream. Clearly, an un- buffered communication is infeasible via the data bus. The bus has its own timing control protocol. The bus cannot, and should not, be tied to device transfer bursts. The byte stream block needs to be stored in a buffer isolated from the communication to processor or main memory. This is precisely what the buffer in the disk controller accomplishes. Once the controller buffer has the required data, then one can envisage to put the controller in contention with CPU and main memory or CPU to obtain an access to the bus. Thus if the controller can get the bus then by using the address and data bus it can directly communicate with main memory. This transfer shall be completely independent of program control from the processor. So we can effect a transfer of one block of data from the controller to main memory provided the controller has the address where data needs to be transferred and data count of the transfer required. This is the kind of information which initially needs to be set up in the controller address and count registers. Putting this information may be done under a program control as a part of DMA set up. The program that does it is usually the device controller. The device controller can then schedule the operations with much finer control. Data location information in disk

Figure 5.7: DMA : Direct memory access mode of data transfer.

Let us now recap the above mode of transfer within a logical framework with a step-by- step description. This procedure can be understood in the context of Figure 5.7. In the figure a few lines do not have an accompanying label. However, by following the numbered sequence and its corresponding label, one can find the nature of the operations considered.

The procedure can be understood by following the description given below:

We shall assume that we have a program P which needs to communicate with a device D and get a chunk of data D to be finally stored starting in address A. The reader should follow through the steps by correlating the numbers in Figure 5.7.

1. The program makes a DMA set-up request.

2. The program deposits the address value A and the data count D.the program also indicates the virtual memory address of the data on disk.

3. The DMA controller records the receipt of relevant information and acknowledges the DMA complete.

4. The device communicates the data to the controller buffer.

5. The controller grabs the address bus and data bus to store the data, one word at a time.

6. The data count is decremented.

7. The above cycle is repeated till the desired data transfer is accomplished. At which time a DMA data transfer complete signal is sent to the process.

The network-oriented traffic (between machines) may be handled in DMA mode. This is so because the network cards are often DMA enabled. Besides, the network traffic usually corresponds to getting information from a disk file at both the ends. Also, because network traffic is in bursts, i.e. there are short intervals of large data transfers. DMA is the most preferred mode of communication to support network traffic.

5.2.6 A Few Additional Remarks

In every one of the above modes of device communication, it must be remarked that the OS makes it look as if we are doing a read or a write operation on a file. In the next section we explore how this illusion of a look and feel of a file is created to effect device communication. Also note that we may have programmed IO for synchronizing information between processes or when speed is not critical. For instance, a process may be waiting for some critical input information required to advance the computation further. As an example of programmed IO, we may consider the PC architecture based on i386 CPU which has a notion of listening to an IO port. Some architectures may even support polling a set of ports. The interrupt transfer is ideally suited for a small amount of critical information like a word, or a line i.e. no more than tens of bytes.
